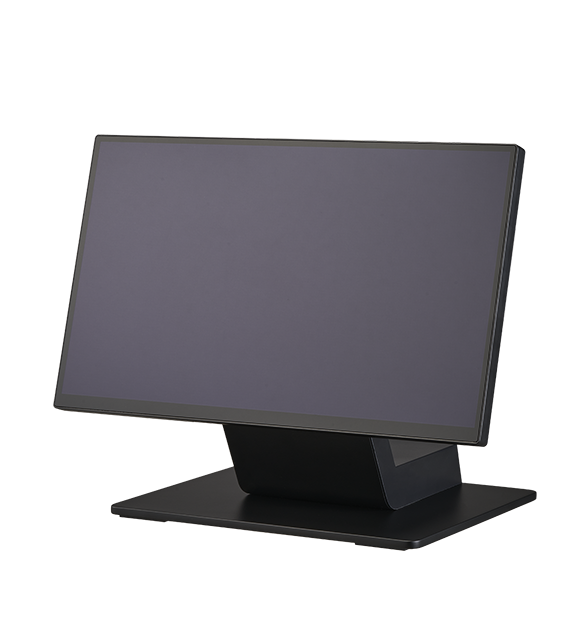

GT-7116
- 4mm Ultra-Narrow Bezel oTP Display
- Dual-Sided Attachment Support
- 400 Nits On-cell Touch Panel for Superior Visuals
- Improved Touch Responsiveness
- Extended I/O Expansion
- Flexible Folding Base
| Specification | GT-7116 |
|---|---|
| System-Configuration | |
| Processor | Intel TGL UP3 Core i3 / Core i5 / Core i7 |
| System Memory | DDR4 SO-DIMM x 2, max. 64GB |
| Storage Device | M.2 SSD [ support both SATA and PCIe signal ] x 2 |
| RAID Function | Yes (RAID 0/1) |
| Intel vPro Support | Yes, Depends on CPU installed |
| TPM | TPM 2.0 |
| Power Supply | 24V/120W |
| OS Support | Windows 10 IoT LTSC / Windows 11 IoT LTSC |
| Display & Touch | |
| LCD | 15.6" oTP LCD (Typ. 400 nits) |
| Resolution | 1920 x 1080 |
| Touch Screen | On-cell touch panel with multi-touch support (IP65 on front panel) |
| I/O & Expansion | |
| Serial Port | RJ50 x 1 (on I/O plate), 5V/12V support |
| Standard USB Port | USB 3.0 x 4 (on I/O plate) |
| PoweredUSB Port | PUSB 12V x 1 + PUSB 24V x 1 (on I/O plate) |
| LAN Port | 10/100/1000 Mb x 1 |
| Display Port |
Internal USB-C x 1 for 2nd display only USB-C x 1 (on I/O plate), support ALT Mode, up to 15.6" monitor |
| CR Port | CR port x 1, control 2 x CR via optional Y-cable, support 24V CR |
| Audio | Internal 2W speaker x 2 |
| Expansion Slot | M.2 2230 for Wi-Fi/BT x 1 |
| USB-C Port | USB-C x 1 (on I/O plate), support ALT Mode, up to 15.6" monitor |
| Extend Storage | N/A |
| Physical & Environmental | |
| Dimension (W x D x H in mm) | 356.3 x 207 x 277.4 |
| Weight (in kg) | 3.726 kg |
| Operating Condition | 0°C - 40°C, 20%RH - 90%RH |
| Storage Condition | -20°C - 70°C, 10%RH - 90%RH |
| Accessories (Optional) | |
| Customer Display | LM/TM-5011LC, LM/TM-5011PC, PD-2611UE |
| External I/O Module |
GT-470 (PUSB 12V x 2 + DC in/out) GT-570 (RJ50 x 2 + USB 2.0 x 4) GT-580 (RJ50 x 2 + USB 3.0 x 4) |
| Side Attachment | RA-101, RA-103, RA-104, RA-105, RA-106, RA-301, RA-311, RA-304, RA-305, RA-308 |
