| System |
| CPU |
Intel Elkhart Lake Celeron J6412 |
| Memory |
DDR4 SO-DIMM x 2, max. 32 GB |
| Storage |
M.2 2280 (support SATA only) x 2 |
| TPM |
TPM 2.0 |
| OS Support |
Windows 10 IoT LTSC / Windows 11 IoT LTSC |
| Display & Touch |
| LCD Size |

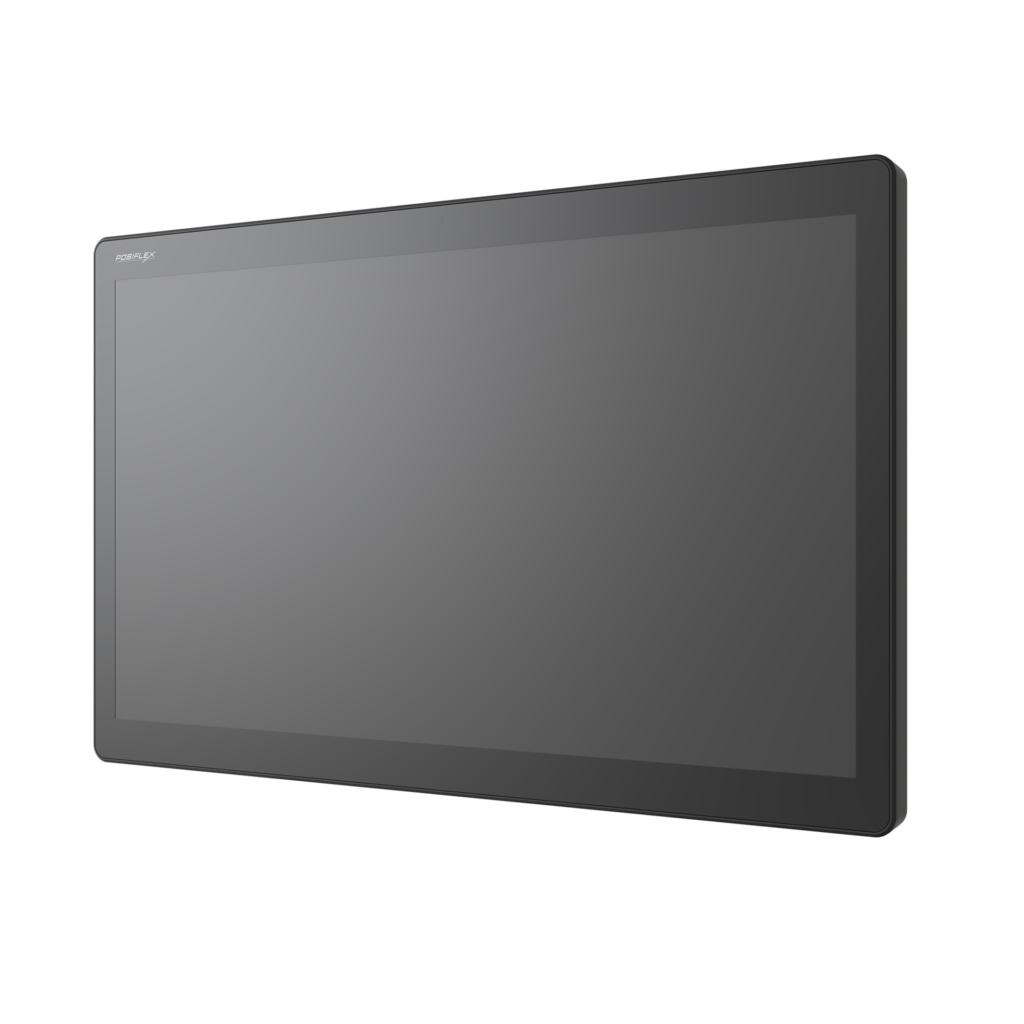

21.5" LCD |
| Resolution |
1920 x 1080, FHD |
| Touch Panel |
PCAP supporting multi-touch, W/AR + AF Coating |
| I/O & Connectivity |
| Serial Port |
DB9 x 1 + RJ50 x 1, 5V/12V support on all COM ports |
| USB Port |
USB 3.0 x 2 + USB 2.0 x 2 |
| LAN |
2.5Gbe x 2 |
| Audio |
Internal speaker x 2 |
| Expansion Slot |
M.2 2230 (reserved for WiFi/BT Module) x 1 |
| USB-C Port |
Adapter needs upgrade to 24V/120W accordingly |
| Mechanical & Environmental |
| Dimensions (WxDxH) |
516 x 51 x 324 mm |
| Weight (kg) |
6 |
| Operating Temp. |
0°C - 45°C, 20%RH - 90%RH |
| Storage Temp. |
-20°C - 70°C, 10%RH - 90%RH |
| IP Rating |
IP54 |
| Power & Options |
| Adapter |
24V/60W |
| Base Support |
Support Gen10 Base |
| Bump Bar Keyboard |
BB3000W for KDS |
| Scanner Module |
Support 2D BCR Kit |
| VESA Mount |
100 x 100 |
