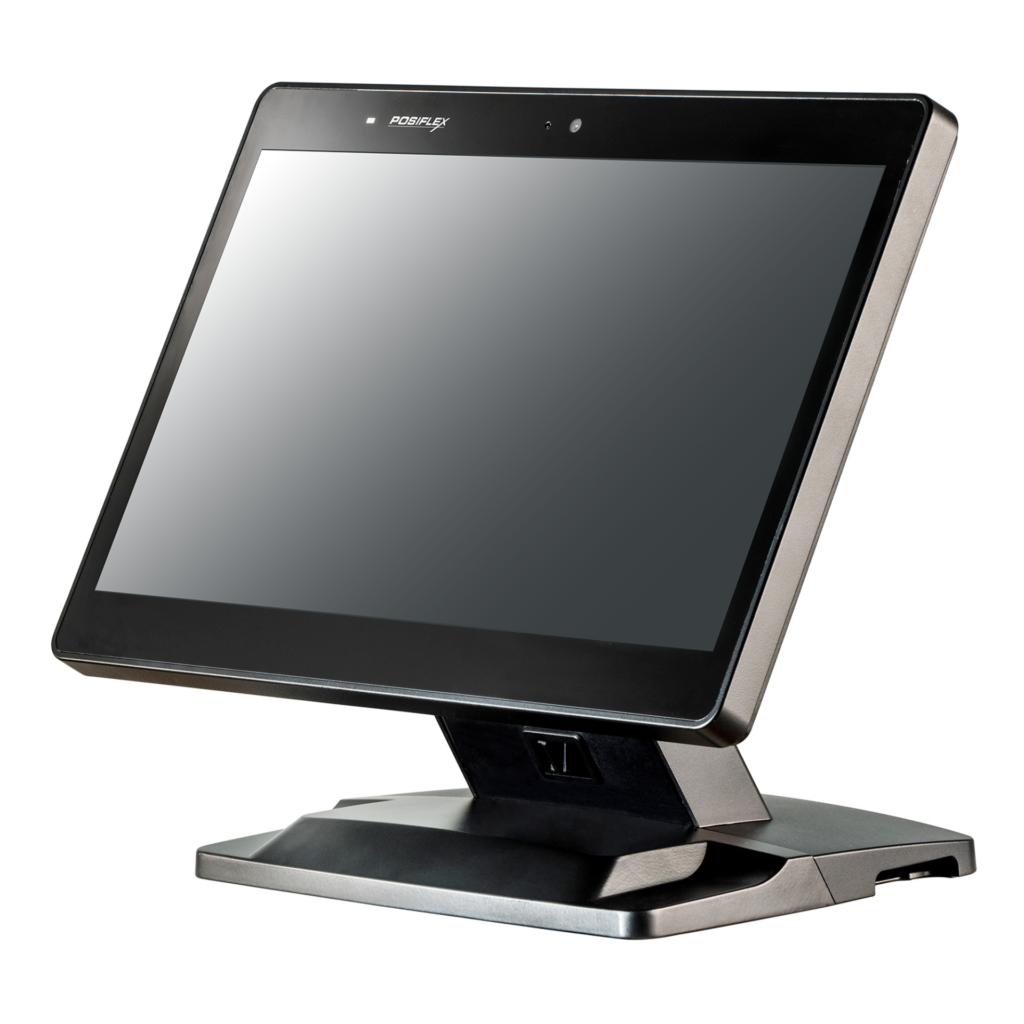

RT-3016A
- Powered by MediaTek G700 Processor
- Fan-Free Design
- Clean Cable Management
- asy Serviceable Design with Removable Back I/O Cover
| System-Configuration | |
| Model Name | RT-3016A |
| Processor | MTK Genio G700 |
| System Memory | 8 GB, LPDDR4 onboard |
| Storage Device | 128 GB eMMC onboard + TF slot |
| Power Supply | 24V DC-in jack x 1, 3-pin (24V / 60W) |
| OS Support | Android 13 W/ EDLA |
| Display & Touch | |
| LCD | 15.6” TFT LCD with LED backlight |
| Resolution | 1920 x 1080 |
| Touch | True-flat PCAP touch with multi-touch support (IP65 on front panel) |
| I/O Expansion | |
| Serial Port | DB9 x 1 + RJ50 x 1, 5V/12V support on all COM ports |
| Standard USB Port | USB 2.0 (Side) x 1 + USB 2.0 (on I/O plate) x 4 |
| OTG USB | USB-C (internal) x 1 |
| LAN Port | 10/100/1000 Mb x 1 |
| Display Port | HDMI x 1 |
| CR Port | CR port x 1, control 2 x CR via optional Y-cable, support 24V CR |
| Audio | Internal speaker x 1 |
| Expansion Slot | M.2 (E-Key) x 1 for Wi-Fi/BT |
| Buttons | Power button, x 1 + BL+ x 1 + BL- x 1 |
| Extend Storage | TF card x 1, up to 1TB |
| Dimension | |
| Dimension (W x D x H mm) | 402 x 207 x 297 |
| Environmental | |
| Operating Condition | 0°C - 40°C, 20%RH - 90%RH |
| Storage Condition | -20°C - 70°C, 10%RH - 90%RH |
| Built-In Options | |
| WiFi module | WiFi 6 / BT 5.2 |
| Camera Module | 1MP wide angle camera |
| Attachment Options | |
| Customer Display | LM/TM-4011LVDS、PD-2612UE |
| External I/O Module |
GT-470 (PUSB 12V x 2 + 24V DC in/out) GT-570 (RJ50 x 2 + USB 2.0 x 4) |
| Side Attachment | RA-101, RA-103, RA-104, RA-105, RA-106, RA-301, RA-311 |
