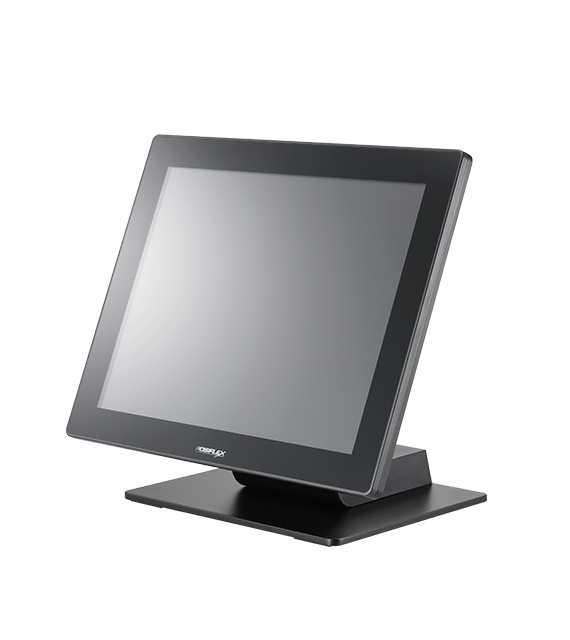

RT-6015-G2C
- 15.6" True Flat PCAP Multi-touch Display
- Powered by Intel's Tiger Lake Core Processors
- 2x USB Type-C Connectivity (1x Display Output Support, 1x Data Only)
- Fan-Free Design
- Clean Cable Management
- Easy Servicable Deisgn with Removable Back I/O Cover
- Support Customer Line Display or 2nd Display
| System-Configuration | RT-6015-G2C |
|---|---|
| Processor |
Intel Tiger Lake UP3 Core i3-1115G4E, up to 3.90 GHz, 6M Cache; Intel Tiger Lake UP3 Core i5-1145G7E, up to 4.10 GHz, 8M Cache; Intel Tiger Lake UP3 Core i7-1185G7E, up to 4.40 GHz, 12M Cache |
| System Memory | DDR4 SO-DIMM slot x 2, max. 64GB |
| Storage Device | M.2 connector x 2 (support both SATA and PCIe signal) |
| RAID Function | Yes |
| Intel vPro Support | Yes, it depends on CPU installed |
| TPM | TPM 2.0 |
| Power Supply | 12V/60W |
| OS Support | Windows 10 IoT LTSC Windows 11 IoT LTSC |
| Display & Touch | |
| LCD | 15” TFT LCD |
| Resolution | 1024 x 768 |
| Touch | True-flat PCAP touch with multi-touch support (IP65 on front panel) |
| I/O Expansion | |
| Serial Port | 3, DB9 x 1 + RJ50 x 2 (on I/O plate), 5V/12V support on all COM ports |
| Parallel Port | N/A |
| Standard USB Port | 5, USB 3.0 x 2 + USB 2.0 x 2 (on I/O plate) + USB 2.0 x 1 (on left side) |
| OTG USB | N/A |
| LAN Port | 10/100/1000 Mb x 1 |
| Display Port | Proprietary connector x1 for 2nd display (provide VGA and USB signal) |
| CR Port | CR port x 1, control 2 x CR via optional Y-cable, support 24V CR |
| PS2 Port | N/A |
| UPS Port | N/A |
| Audio | Internal 2W speaker x 1 |
| Expansion Slot | M.2 2230 x 1 for Wi-Fi/BT |
| USB-C Port | USB-C x 2(on I/O plate), one support external monitor up to 15.6", the other support data transfer only |
| Dimension | |
| Dimension (W x D x H in mm) | 368 x 207 x 325 |
| Weight (N. W. in kg) | 4.81 |
| Environmental | |
| Operating Condition | 0°C - 40°C, 20%RH - 90%RH |
| Storage Condition | -20°C - 70°C, 10%RH - 90%RH |
| Built-In Options | |
| WiFi module | M.2 WiFi/BT module |
| Camera Module | 1MP wide angle camera |
| Port Options | |
| PoweredUSB Port | 12V/150W with optional Powered USB module with 24V + 12V (USB 2.0 x 1 will no longer be available with the Powered USB module) |
| Attachment Options | |
| Customer Facing Display | LM/TM-4010, LM/TM-4011, PD-2610UE |
| Side Attachment | RA-101, RA-103, RA-104, RA-301, RA-311 |
