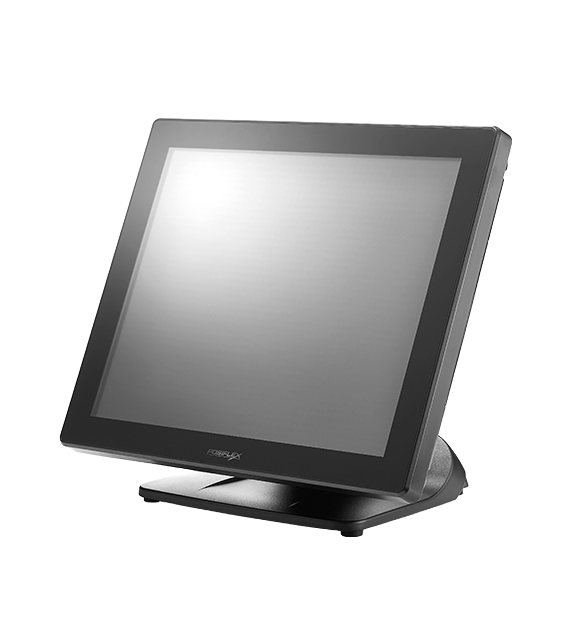

XT-3817-G2

System-Configuration	XT-3817-G2
Processor	Intel Elkhart Lake Celeron J6412, up to 2.60 GHz, 1.5M Cache
System Memory	DDR4 SO-DIMM slot x 2, max. 32GB
Storage Device	M.2 connector x 2 (support SATA signal only)
RAID Function	N/A
Intel vPro Support	N/A
TPM	TPM 2.0
Power Supply	12V/84W (default); 12/150W with optional PoweredUSB
OS Support	Windows 10 IoT LTSC Windows 11 IoT LTSC
Display & Touch
LCD	17” TFT LCD
Resolution	1280 x 1024
Touch	True-flat PCAP touch with multi-touch support (IP65 on front panel)
I/O Expansion
Serial Port	DB9 x 4 + COM5/COM6 via optional converter cable from service window, 5V support on all COM ports, 12V support on COM1 to COM 4
Parallel Port	via optional conversion cable through service window
Standard USB Port	USB 3.0 x 2 + USB 2.0 x 6
PoweredUSB Port	Optional 24V x 1 + 12V x 3 via GEN 8E base
OTG USB	N/A
LAN Port	10/100/1000 Mb x 2
Display Port	VGA x 1 (12V support for Posiflex monitors)
CR Port	RJ11 x 1, control 2 CR via optional Y-cable, support 24V cash drawer
PS2 Port	via optional conversion cable through service window
UPS Port	Yes, for optional UPS battery
Audio	Internal 2W speaker x 1 + Line-out/mic-in combo jack
Expansion Slot	M.2 slot x 1
Dimension
Dimension (W x D x H in mm)	404 x 251 x 355
Weight (N. W. in kg)	7.2
Environmental
Operating Condition	0°C - 40°C, 20%RH - 90%RH
Storage Condition	-20°C - 70°C, 10%RH - 90%RH
Built-In Options
WiFi module	M.2 WiFi/BT module
Camera Module	N/A
Printer Module	N/A
AG Glass	N/A
Attachment Options
POS Monitor	PCAP touch TFT LCD: 9.7"/14"/15" Non-touch TFT LCD: 7"/9.7"/12.1"/14"/15" Resistive touch TFT LCD: 15"
Line Display	2 x 20 rear-mount VFD/LCD customer line display; 7" color LCD graphical customer line display
External UPS Pack for RT Series	N/A
Attachment	MSR; iButton; Rotatable 2D Scanner; RFID; Fingerprint Sensor; Keypad
Note	-
